FABRICATED Y TYPE STRAINER

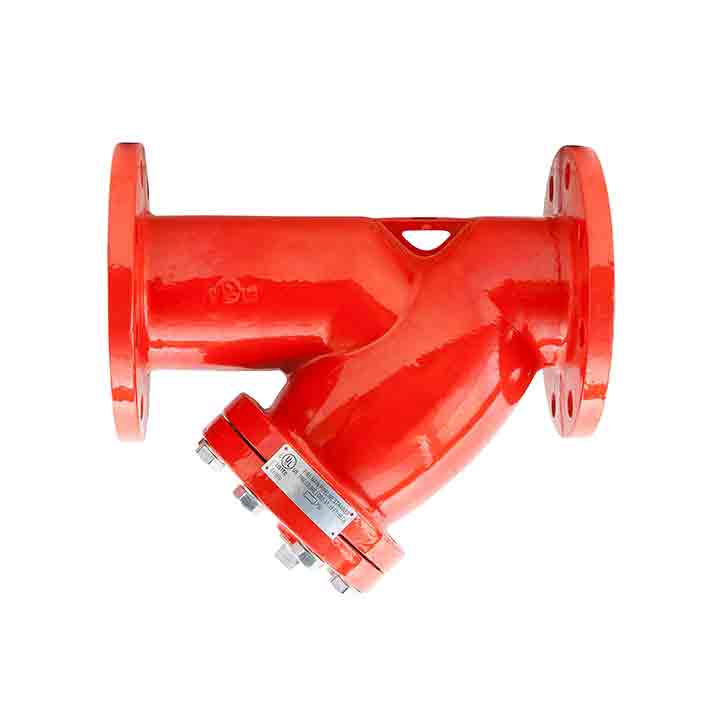

CASTED Y TYPE STRAINER
Model : Fabricated, Casted
Body MOC : IS 1239, IS 3589, Cast Iron, Cast Steel, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged, Butt weld, Screwed & Socket end
Size : 1” (15mm) to 32” (800mm), Higher sizes on request

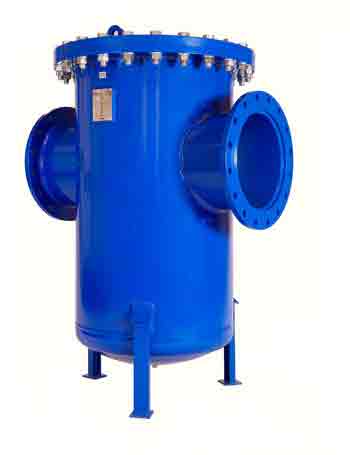

BASKET / SIMPLEX STRAINER
Model : Fabricated, Casted
Body MOC : IS 1239, IS 3589, Cast Iron, Cast Steel, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged, Butt weld, Screwed & Socket end
Size : 1” (25mm) to 40” (1000mm), Higher sizes on request

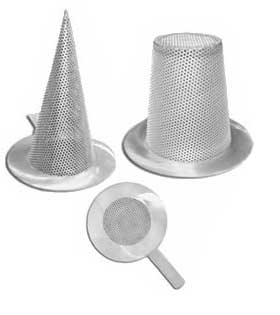

CONICAL STRAINER
Model : Fabricated
Body MOC : IS 1239, IS 3589, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged, Butt weld, Screwed & Socket end
Size : 1” (25mm) to 32” (800mm), Higher sizes on request

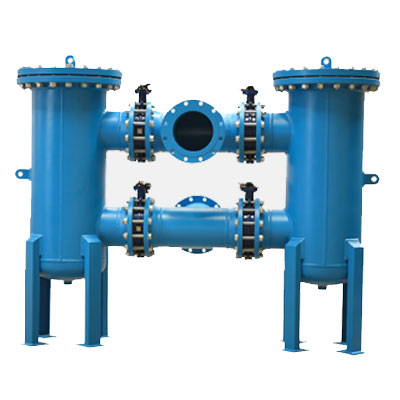

DUPLEX STRAINER
Model : Fabricated, Casted
Body MOC : IS 1239, IS 3589, Cast Steel, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Isolation Valves : 4 Nos Butterfly Valves / 2 Nos 3 Way Ball Valve etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged and Butt weld.
Size : 1” (25mm) to 40” (1000mm), Higher sizes on request

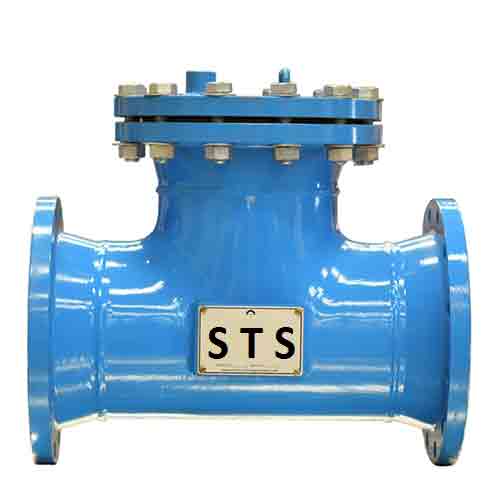

T TYPE STRAINER
Model : Fabricated
Body MOC : A234 Gr WPB, IS 1239, IS 3589, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged, Butt weld, Screwed, & Socket end
Size : 1” (25mm) to 32” (800mm), Higher sizes on request

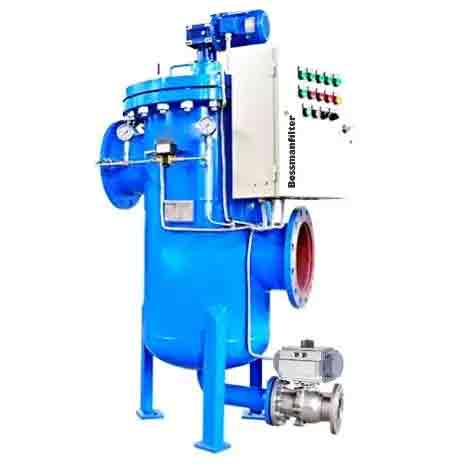

AUTO SELF CLEANING STRAINER
Model : Fabricated
Body MOC : IS 1239, IS 3589, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged and Butt weld.
Accessories : Control Panel, Differential Pressure Switch, Motor with Gear Box, Scrubber Assemble, Motorized Drain Valve, etc.
Size : 1” (25mm) to 32” (800mm), Higher sizes on request
SUCTION DIFFUSER
Model : Fabricated, Casted
Body MOC : IS 1239, IS 3589, Cast Iron, Cast Steel, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged and Butt weld
Size : 1” (25mm) to 24” (600mm), Higher sizes on request

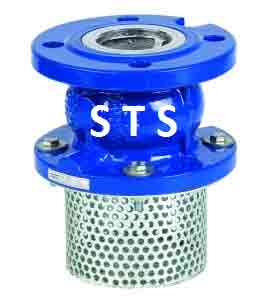

FOOT VALVE STRAINER
Model : Fabricated, Casted
Body MOC : IS 1239, IS 3589, Cast Iron, Cast Steel, ASTM A106, SS 304, SS 316, DSS, etc.
Filter Element MOC : SS 304, SS 316, DSS, Monel, etc.
Fasteners : IS 1367, ASTM A193 / A194, SS 304, SS 316, etc.
Gaskets : Nitrile Rubber, EPDM, NACF, Spiral Wound, PTFE, etc.
End Connection : Flanged, Butt weld, Screwed & Socket end
Size : 1” (25mm) to 12” (300mm), Higher sizes on request
-
